Product Features

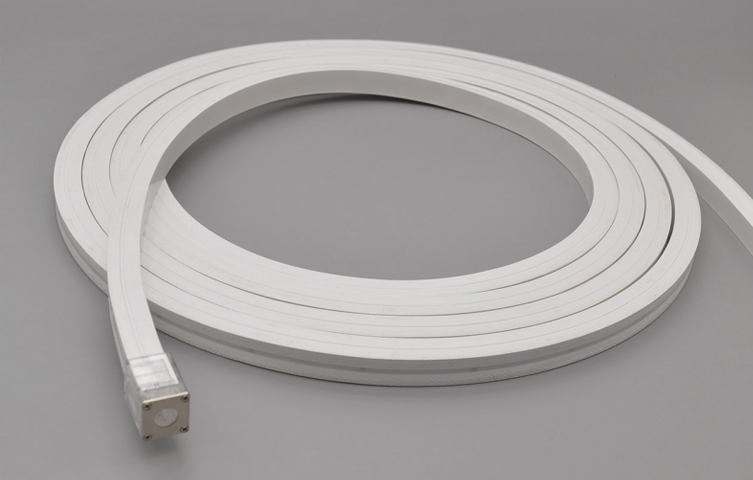

- Silicone Ledline Flex Side1212 IP67, DC24V,has bending direction vertically and Front / Side / Bottom Cable Entry.with radius of 100mm (3.94” ) and across section, size:12mm*12mm/0.47”*0.47”(W*H).

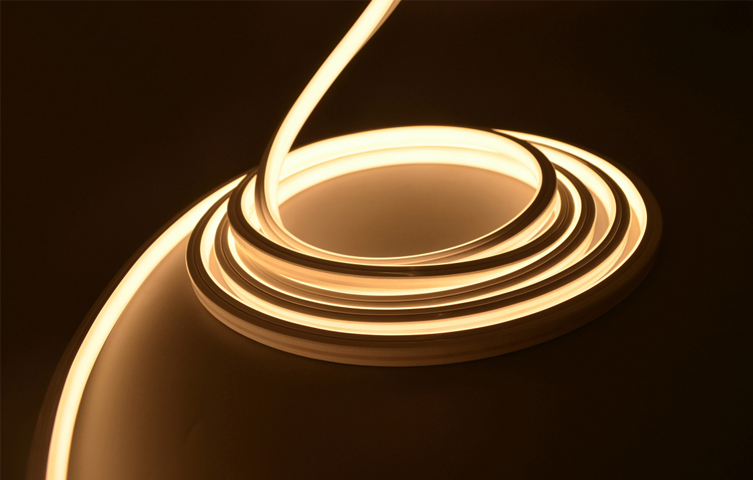

- It is IP67 protection, never yellow, UV resistant, saltwater resistant and high temperature resistant via opal silicone coating. Uniform luminance and dot free will bring the most excellent performance for indoor& outdoor application.
- The product has constant voltage and constant current version. Constant current version can connect 28meters in series with one power supply and don’ t have voltage drop, and can save the installation cost better.
- Unique end cap design, can install quickly and easily to meet the different length’s request, No welding and dealing with waterproof.
| Spec. | Description |
|---|---|
| Product Name: | 1212 – Top view silicone led neon flex IP67- 3 Years warranty |
| Item No.: | TY-N1212V24-Cx / TY-N1212V24-CCx |
| Size(mm): | 12*12mm |
| LED Type: | SMD2835 LED Chip |
| LED QTY(pcs): | 120LEDs/meter |
| IC Type: | / |
| IC QTY(pcs): | / |
| Pixels: | / |
| PCB Material: | Double side White FPC |
| Luminous Flux(lm): | 24-26lm/led |
| CIR(Ra): | >90Ra |
| Voltage(V): | DC24V |
| Watt(W): | 5W/10W/15W are available |
| Driving method: | Constant Voltage & Constant Current |
| Beam angle(°): | 120 |
| Available Color: | WW/NW/CW/Red/Yellow/Blue/Green/Ice Blue/Pink/Orange/RGB/RGBW |
| Color temperature (Kelvin): | 2100K/2400K/2700K/3000K/3500K/4000K/5000K/6000K |
| IP Rank: | IP67 |
| Warranty: | 3 years |
| Lifespan(hrs): | 50000Hrs |
| Packaging: | 5 meters, 10 meters, 15 meters, 20 meters, 50 meters/reel |
| Way of installation: | Stainless steel Mounting clips, Aluminium profile, Cured Metal profile |
| Sample lead time: | 3-5 days |
| Order lead time: | 5-7 days |
| Payment term: | T/T, Paypal, L/C, Western&Union |
Product Features
- Silicone Ledline Flex Side1212 IP67, DC24V,has bending direction vertically and Front / Side / Bottom Cable Entry.with radius of 100mm (3.94” ) and across section, size:12mm*12mm/0.47”*0.47”(W*H).
- It is IP67 protection, never yellow, UV resistant, saltwater resistant and high temperature resistant via opal silicone coating. Uniform luminance and dot free will bring the most excellent performance for indoor& outdoor application.
- The product has constant voltage and constant current version. Constant current version can connect 28meters in series with one power supply and don’ t have voltage drop, and can save the installation cost better.
- Unique end cap design, can install quickly and easily to meet the different length’s request, No welding and dealing with waterproof.
- 12x12mm silicone led neon flex datasheet
- Tyria All size silicone led neon
| Product Name | IP Rank | Reel/CTN | CTN Size(cm) | N.W./Reel | G.W./CTN |
|---|---|---|---|---|---|
| 3528 flexible led strip, 30leds/meter | IP20 | 50 Reels | 52*24.5*27cm | 0.10kg | 5.8kg |
| 3528 flexible led strip, 30leds/meter | IP65 | 50 Reels | 52*24.5*27cm | 0.22kg | 10.0kg |
| 3528 flexible led strip, 60leds/meter | IP20 | 50 Reels | 52*24.5*27cm | 0.19kg | 6.0kg |
| 3528 flexible led strip, 60leds/meter | IP65 | 50 Reels | 52*24.5*27cm | 0.22kg | 11.5kg |
| 3528 flexible led strip, 60leds/meter | IP67 | 40 Reels | 52*24.5*27cm | 0.24kg | 10.1kg |
| 3528 flexible led strip, 120leds/meter | IP20 | 50 Reels | 52*24.5*27cm | 0.15kg | 8.0kg |
| 3528 flexible led strip, 120leds/meter | IP65 | 50 Reels | 52*24.5*27cm | 0.27kg | 14.0kg |
| 3528 flexible led strip, 120leds/meter | IP67 | 40 Reels | 52*24.5*27cm | 0.29kg | 12.1kg |
| 3528 flexible led strip, 120leds/meter | IP68 | 40 Reels | 52*24.5*27cm | 0.35kg | 14.5kg |
