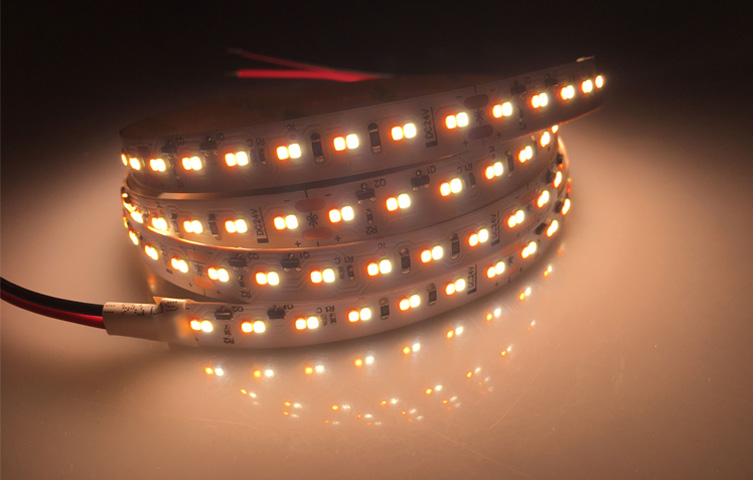

2216 Dim to Warm LED Flexible Strip Light

Home » Portfolio » 2216 Dim to Warm LED Flexible Strip Light
  • View Larger Image
  • View Larger Image
  • View Larger Image
2216 Dim to Warm LED Flexible Strip LightTyria Lighting2018-12-25T10:14:46+00:00
  • Specification

  • Drawing&Datasheet

  • Packaging Information

  • Contact

  • Specification

CRI90, CRI95-97 SMD2216 Flexible Strip Light

Why choose 90Ra or 95-97Ra 2216 led strip tape?

  • 2216 is Newest SMD led component with heat dissipation pad
  • Slim size for led, 2.2mm(L)X1.6mm(W)
  • Narrow 5mm width PCB are avaiable, ideal for cabinet and furniture
  • Has very nice effect of Color Rendering Index, and CRI90, CRI95-97 2216 led tape is very competitive comparing with CRI90 3528 and 2835 Led
  • Has very nice Uniformity, and high light efficiency
  • 1800-3000K dim to warm
  • DC24 voltage
  • High density led, can not see the led point in the aluminum profile
Spec. Description
Product Name:  SMD2216 Dim to Warm LED Flexible Strip Light
Item No.:  TY-ST22Q224V24-DTW
PCB Size(mm):  10mm width PCB
LED Type:  SMD2216
LED QTY(pcs):  224leds/meter
IC Type: /
IC QTY(pcs): /
Pixels: /
PCB Material:  Double side White FPC
Luminous Flux(m):  1500lm/m
CIR(Ra):  >90
Voltage(V):  DC24V
Watt(W):  18W/meter
Driving method:  Constant Voltage
Beam angle(°):  120
Available Color:  1800-3000K, dim to warm
Color temperature (Kelvin):  1800-3000K
IP Rank:  IP20, IP65, IP67
Warranty:  3 years
Lifespan(hrs):  50000Hrs
Packaging:  5 meters/reel
Way of installation:  3M self-adhesive tape on the back
Sample lead time:  3-5 days
Order lead time:  5-7 days
Payment term:  T/T, Paypal, L/C, Western&Union
  • Drawing&Datasheet

Ideal for interior decoration, LED flexible strip is thin, highly bright and perfect for interior decoration. These LED lights are fixed on a flexible FPC that makes it easy to use. Just attach it with power supply and it will add vibrant colors to your place, making it simply amazing.

Copper Finish SMD LED 2216 Flexible Strip Light comes as a reel of linear LED lights mounted on a flexible strip of printed circuit board (PCB) with a strong 3M adhesive backing. Sometimes referred to as “LED tape lights,” the flexible design of LED strips means the lights can be installed in basically any space you can imagine. The fact that the flexible PCB can be bent up to 90 degrees and cut every 3 LEDs or 6 LEDs, makes it a very versatile and customizable solution for adding blue lighting wherever you need it.

Why choose CRI>90Ra 2216 led strip tape?

  • 2216 is Newest SMD led component with heat dissipation pad
  • Slim size for led, 2.2mm(L)X1.6mm(W)
  • Narrow 5mm width PCB are avaiable, ideal for cabinet and furniture
  • Has very nice effect of Color Rendering Index, and CRI90, CRI95-97 2216 led tape is very competitive comparing with CRI90 3528 and 2835 Led
  • Has very nice Uniformity, and high light efficiency
  • 1800-3000K dim to warm
  • High density led, can not see the led point in the aluminum profile

Different PCB color are available

different PCB color

Accessories

Wiring Diagram





  • Packaging Information

Product Name IP Rank Reel/CTN CTN Size(cm) N.W./Reel G.W./CTN
3528 flexible led strip, 30leds/meter IP20 50 Reels 52*24.5*27cm 0.10kg 5.8kg
3528 flexible led strip, 30leds/meter IP65 50 Reels 52*24.5*27cm 0.22kg 10.0kg
3528 flexible led strip, 60leds/meter IP20 50 Reels 52*24.5*27cm 0.19kg 6.0kg
3528 flexible led strip, 60leds/meter IP65 50 Reels 52*24.5*27cm 0.22kg 11.5kg
3528 flexible led strip, 60leds/meter IP67 40 Reels 52*24.5*27cm 0.24kg 10.1kg
3528 flexible led strip, 120leds/meter IP20 50 Reels 52*24.5*27cm 0.15kg 8.0kg
3528 flexible led strip, 120leds/meter IP65 50 Reels 52*24.5*27cm 0.27kg 14.0kg
3528 flexible led strip, 120leds/meter IP67 40 Reels 52*24.5*27cm 0.29kg 12.1kg
3528 flexible led strip, 120leds/meter IP68 40 Reels 52*24.5*27cm 0.35kg 14.5kg

delivery
